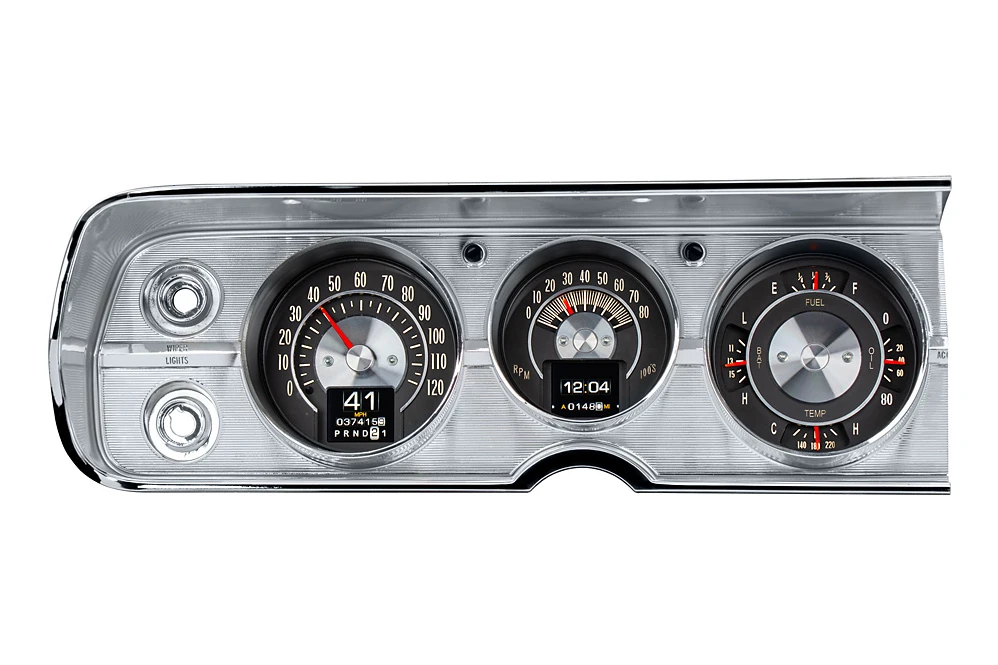

1964-1965 Chevelle RTX Instruments
The 1964-1965 Chevelle RTX Instruments is a premium, direct-fit upgrade manufactured by Dakota Digital Employing a “Retrotech” design philosophy, the cluster maintains a highly accurate, stock appearance when the ignition is turned off, while completely waking up with customizable modern LED backlighting and digital features once powered.
Visual Design & Aesthetic
-
- The Factory Look: The gauge cluster mimics original 1964–1965 layout indicators, fonts, and styling, complete with authentic spun aluminum accents and a multi-layer face layout.
- LED Backlighting: Once the ignition is engaged, the cluster illuminates with full-spectrum LED backlighting that supports over 30 selectable color options and 12 pre-configured color themes (such as Incandescent, White Hot, Emerald, and Fire and Ice) to match any interior styling.
- Hidden Turn Signals: High-efficiency LED turn signals and a high-beam flasher utilize the exact original factory locations on the dash layout, hiding away cleanly when unlit.
Telemetry Configuration
The cluster consolidates comprehensive diagnostic info into the classic 3-pod A-body layout:
-
- Analog Mechanical Sweeps: Includes a 0–160 MPH Speedometer, a 0–8,000 RPM Tachometer, Oil Pressure (0–80 psi), Water Temperature (100–260ºF), Fuel Level (E-F), and Volts (9–17 VDC).
- Twin TFT Message Centers: Integrated high-definition digital screens sit discreetly inside the layout dials. These can be configured to display a million-mile odometer, dual trip meters, a 12-hour clock, and performance diagnostics like a 0–60 MPH timer, 1/4-mile track speed clocks, and high RPM/Speed recall.
