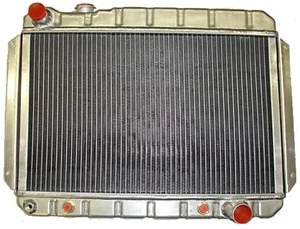

1966-67 Heavy Duty Aluminum Radiator (Auto or Man)

Dimensions20.5″ Tall x 25″ wide (not including bracket width)x 3.25″ Top tank width.Approximately 27.75″ wide with bracket dimensions. Radiator is 2- 1 inch cores. 1966-1967 Chevelle, Malibu and El Camino aluminum radiator built to factory specifications. They look like the original factory radiators but now are lighter in weight and more efficient than the copper/brass. These are welded (not epoxy), all aluminum. Good for big or small blocks. This has the bungs for the automatic transmisson cooler or it can be plugged off for the stick cars.Direct bolt in. Has dual high flow aluminum tubes, 50% more capacity then stock 2-row. Internal transmission cooler, 1 1/2″ inlet, 1 3/4″ outlet.Core size: 23 1/2″ wide, 15 1/2″ tall, 2 1/2″ thickOverall size (widest point): 27 1/2″ wide, 20 3/4″ tall, 3″ thick
