1969 Master Chassis Bolt Kit 307/350, Drum Brakes
1969 Master Chassis Bolt Kit 307/350, Drum Brakes;Manufactured primarily by AMK Products to satisfy strict judging guidelines, these master hardware bundles precisely replicate original assembly line standards by using correct thread pitches, high-tensile specifications, authentic factory head markings, and factory-matched chemical finishes (such as black phosphate, silver zinc, or cadmium plating). Buying a pre-packaged master chassis bundle eliminates the hassle of tracking down loose fasteners while typically saving restorers at least 20% compared to purchasing individual component hardware sub-kits.

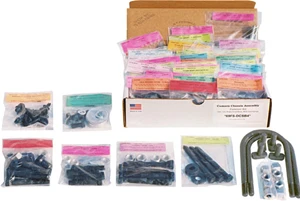

What the 339 to 349-Piece Kit Includes
The underlying fasteners arrive divided into individually sealed, clearly labeled sub-bags categorized by functional mechanical sub-assemblies (identified by original factory “G-numbered” codes). Depending on the precise platform configuration, a standard small-block drum brake kit ranges between 339 to 349 total pieces covering:
- Front Drum Brake & Master Cylinder Hardware: Brake booster mounting flange nuts, brake backing plate assembly-to-spindle Grade 8 hex bolts, master cylinder mounting hardware, brake fluid distribution frame clips, and front wheel cylinder bolts.
- Suspension & Steering Systems: Factory-spec pointed chassis bolts and locknuts for upper and lower front control arms, control arm bushings, front suspension bump stops, stabilizer/sway bar insulator brackets and end links (with correct rubber bushings), idler arm, pitman arm, and heavy-duty steering box-to-frame bolts.
- Drivetrain & Small Block Details: Small block (307/350) engine-to-frame thru-bolts, frame-side engine mount bracket hardware, transmission crossmember insulators, differential housing cover bolts (10-bolt specific), rear axle retainer plates, and driveshaft U-joint hardware.
- Fuel & Underbody Assemblies: Gas tank mounting strap hardware, fuel vapor line clips, fuel filler neck cover screws, parking brake assembly cables/controls, and accelerator pedal linkage lever supports
