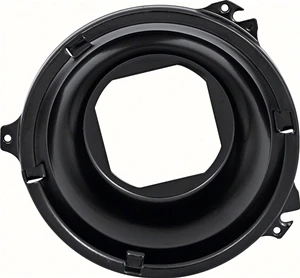

GM Inner Headlight Mounting Bucket, Marked “D” (ea)

GM Inner Headlight Mounting Bucket, Marked “D” (ea)

GM Inner Headlight Mounting Bucket, Marked “D” (ea),is a stamped-steel, square-hole reproduction component designed for classic 4-headlight (quad layout) vehicles using 5-3/4″ round sealed beams. Because quad headlight assemblies use highly specific offsets to aim the beams correctly, General Motors stamped individual letters (“A”, “B”, “C”, and “D”) directly onto the mounting tabs at the assembly line to prevent cross-installation. These buckets are sold individually (ea).

• Positional Specifics: The “D” code stamping designates this bucket for exact, position-locked installations. While position requirements vary by model architecture, classic applications include:
  • 1970 Chevelle & El Camino: Passenger Side (RH Inner High-Beam location).
  • 1968–1982 Corvette: Driver Side (LH Inner High-Beam location).
  • 1958–1971 Chevrolet Full-Size (Bel Air, Impala, Biscayne): LH Inner.
  • 1972–1976 Chevrolet Full-Size: RH Inner.
  • 1958–1972 GMC/Chevy Trucks (Quad configurations): LH Inner.
  • 1967–1968 Pontiac Firebird: RH Inner.

• Concours-Accurate Stamping: Features the authentic factory-correct “D” marked tab stamped right into the raw steel mold before finishing to meet strict car show judging guidelines.
• 3-Tab Ring Interface: Formed with three perimeter tabs specifically positioned to receive standard 3-tab chrome headlight bulb retaining rings.
• Corrosion Protection: Finished in a premium black EDP (Electrophoretic Deposition) primer coating to isolate the underlying stamped steel from engine bay condensation, road spray, and rust.
